DESCRIPTION
📣NEW PDX MK4
In 2017, we witnessed the disappointing flaws of supposedly premium winches. Their cost-cutting designs included subpar 15mm2 wiring, insufficient for loads requiring 400+ amps. Determined to create something superior, we embarked on a new mission.
In 2019, we introduced the PDX: a game-changing winch with an all-alloy design. This revolutionary innovation not only achieved lighter weight and enhanced strength but also offered easier clutch rotation, improved fitment, and simplified servicing. Today, we proudly present the pinnacle of our advancements: the PDX MK4.
Experience the ultimate in wiring performance with our ultra-duty cables, boasting over 8 times less resistance than others. Enjoy enhanced connectivity with three operational remotes included, eliminating the need for wireless dongles. And rest assured, our latest wire sheathing is the most durable we've ever created—pre-fitted and elegantly black.
Welcome to a new era of winching excellence with the PDX MK4.

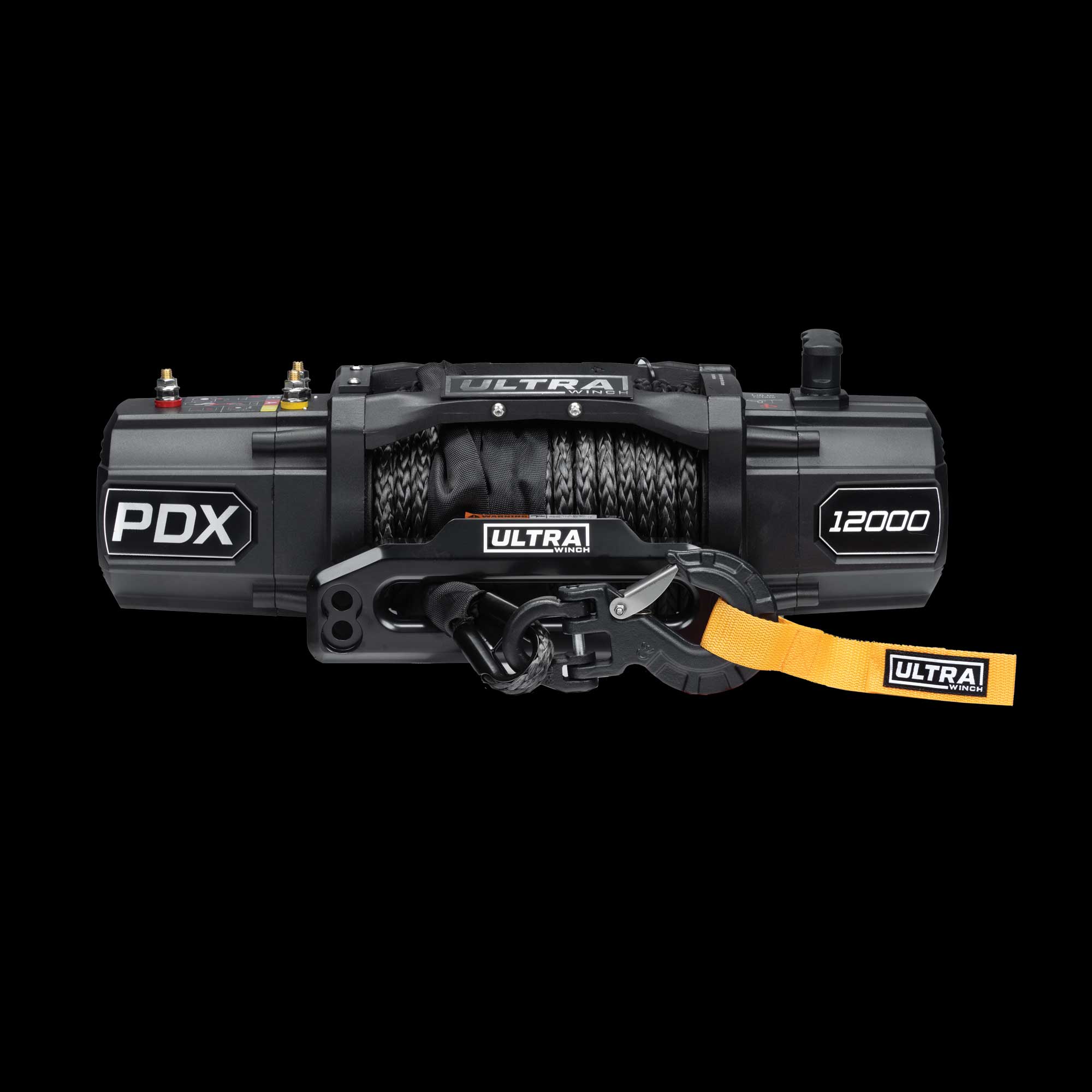

PDX Mk4 - 12,000lbs / 5443 KG / PDX Mk3 - 9,5000lb / 4318 KG
- 90º Rotatable clutch housing design for easy access
- Lifetime Mechanical Warranty
- 7 Year Electrical winch Warranty
- 7 Year Water Ingress Warranty

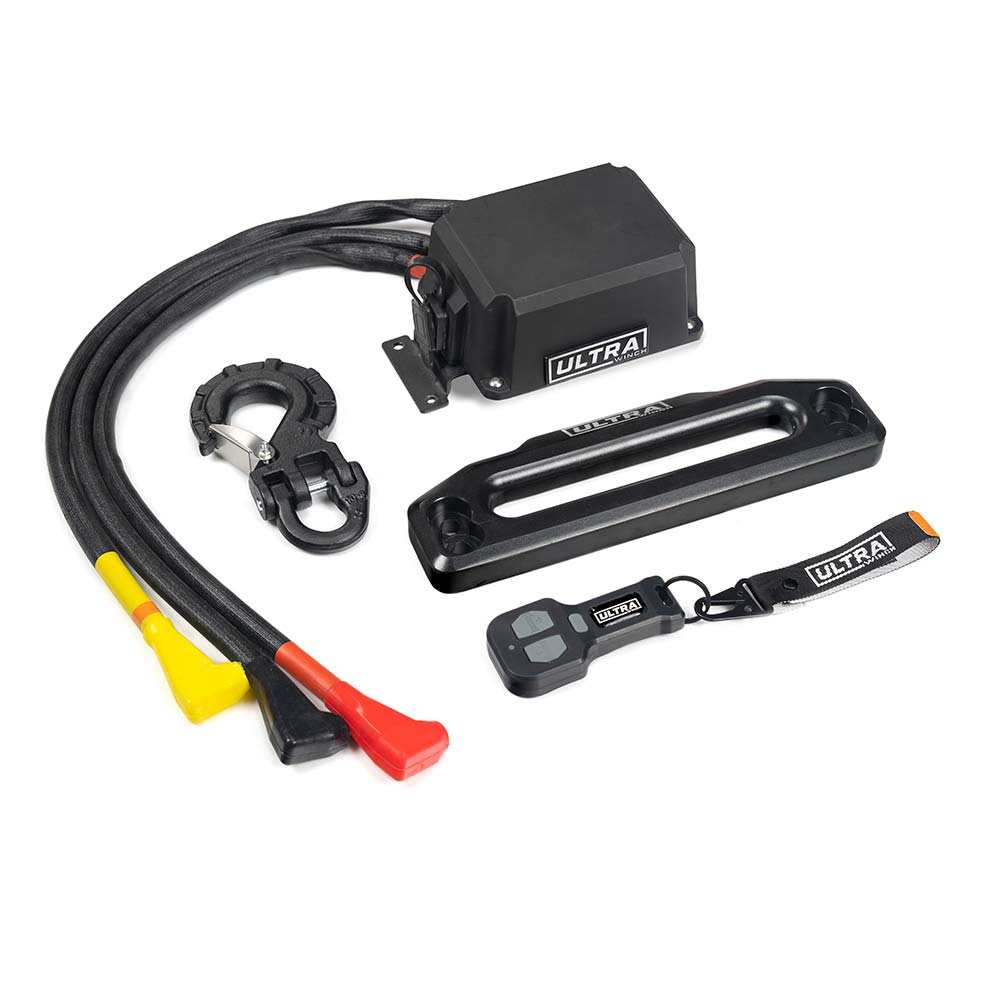

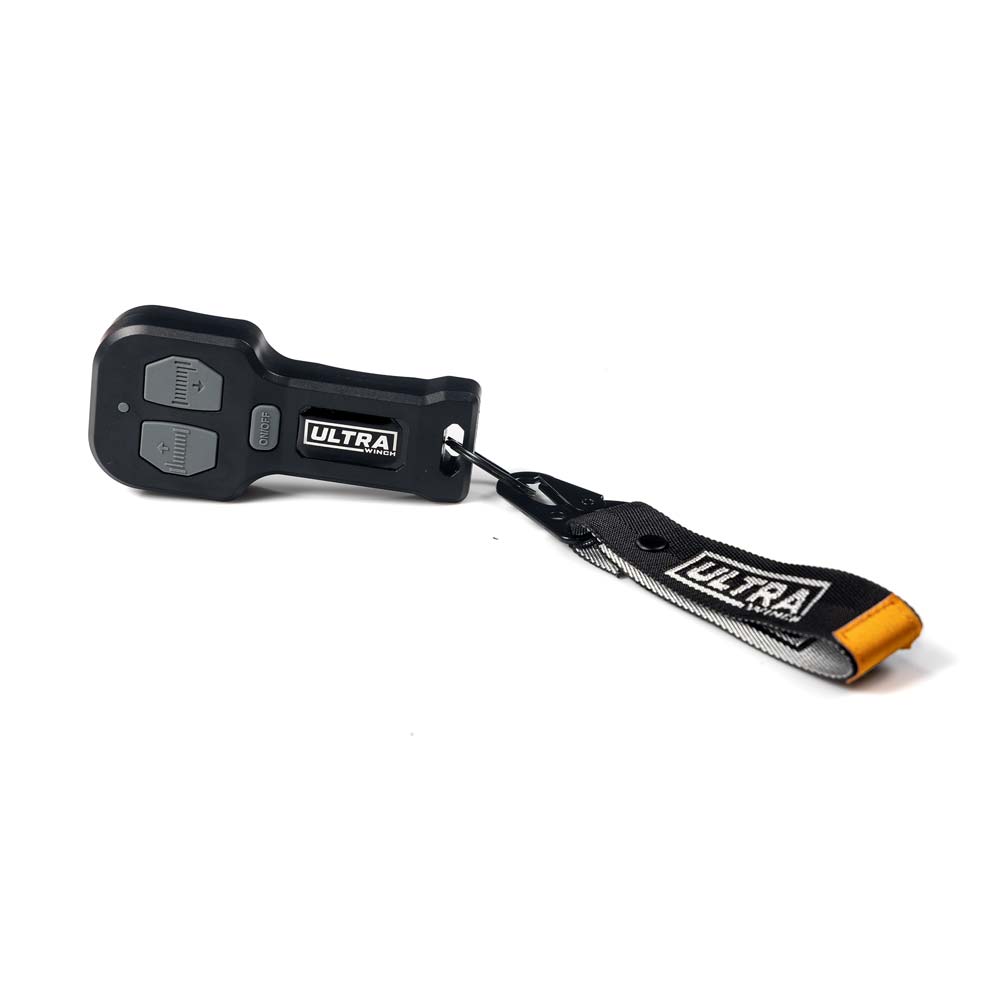

- Wired and wireless hand remote included

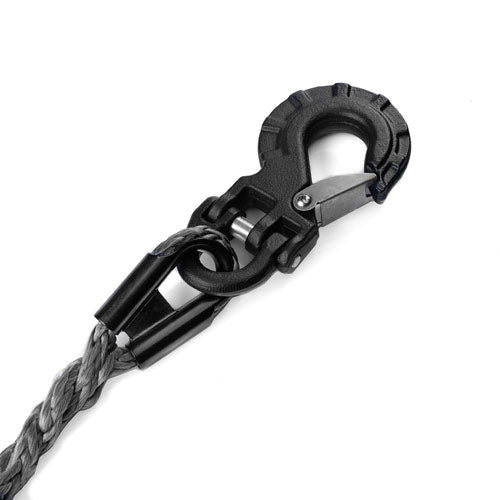

- Winch hook with strap
- Fairlead included
- 235:1 Three stage planetary gearbox
- Rugged 600A Solenoid - IP67 Waterproof: Extension Wiring Relocation Kit Available (beware of exaggerated figures).

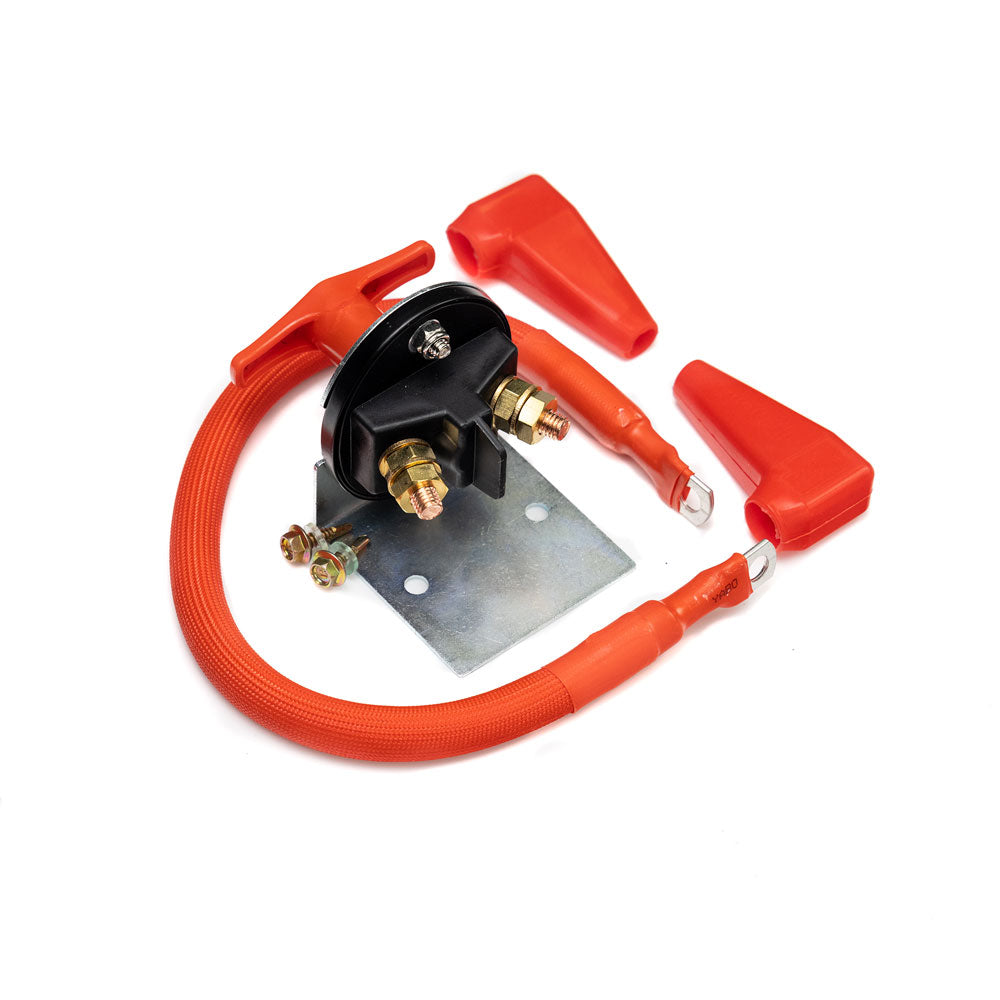

- Battery Isolation Switch - Safety Key
- 25Mx10.0mm 16,800lbs rated rope
- 20.16kg Light Weight with synthetic rope. 22.5kg With Controller box, wiring and bolts.

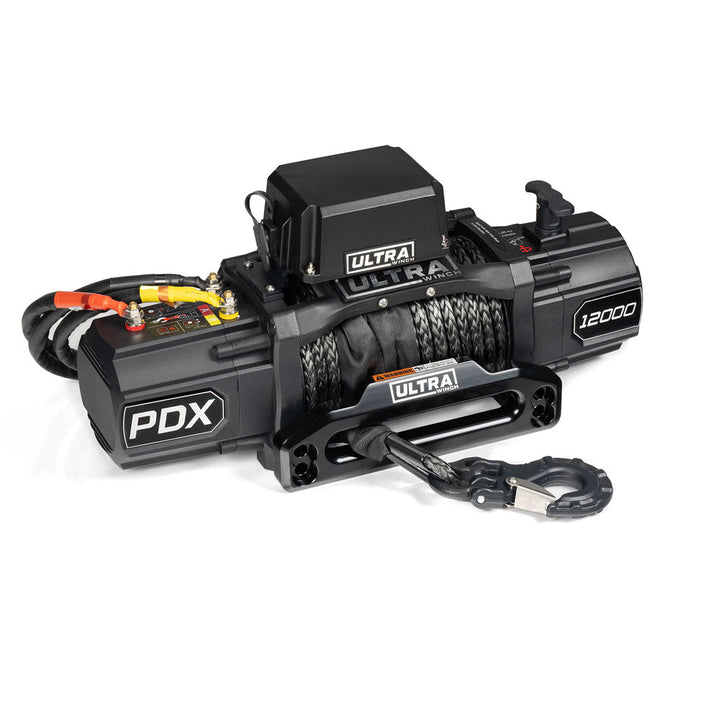

PDX MK4 Updates
Unmatched power
- New Ultra heavy duty 50mm2 cross sectional wiring with black protective sheathing.
- Ultra heavy duty Rugged 600A Solenoid.
- New terminal post layout for easier wire connections.
More Connectivity
- Mud-proof, recessed sockets for stronger controller connections in all conditions.
- Industry first y-splitter allowing multiple control connections (In-cab + wired hand control + wireless remote)
- New universal in-cabin rocker switch control.
- Updated control box bracket allows control box to be mounted externally with less bolts.
New Accessories
- Updated orange hook strap and remote lanyards.
- All outdoor rated metal badges.
- Updated solid cross brace with IntegraPort design for future accessory integration.
- Pre-fitted mounting nuts for easier installation.
- New lighter weight packaging for Australia wide residential courier delivery.

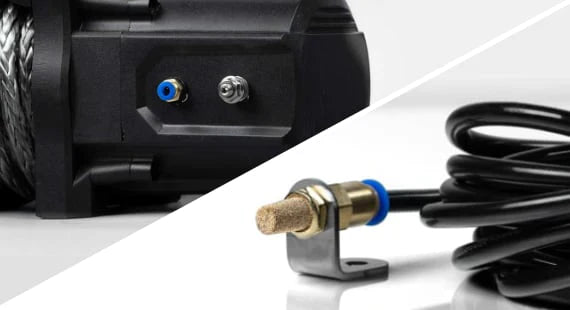

- Updated orange breather valve hose kit.

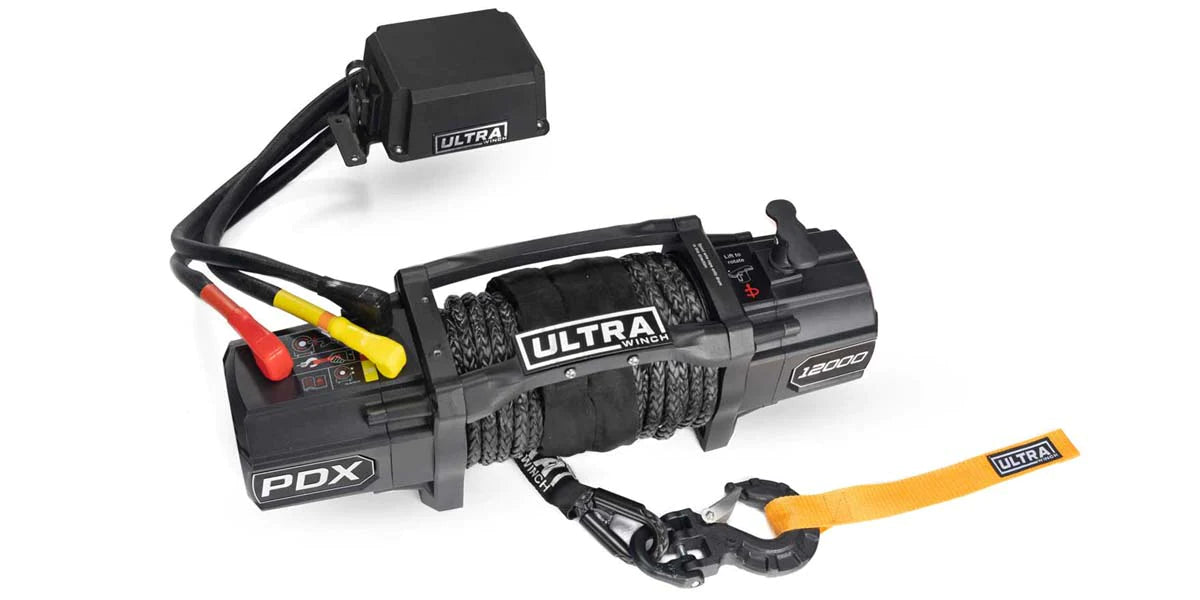

Pro tip - Longer wires enable a hidden control box fitment within the bull bar - dismounted from the winch.
