DESCRIPTION

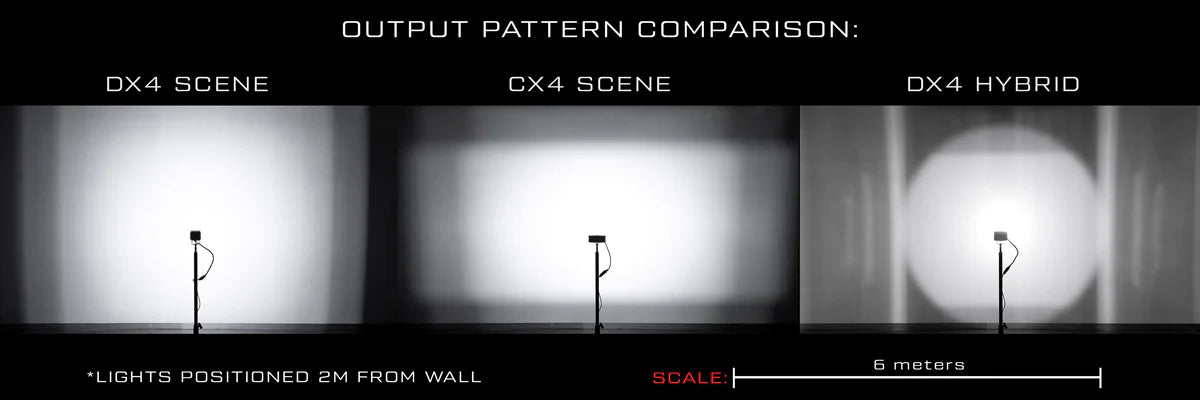

Extra Wide Flood!

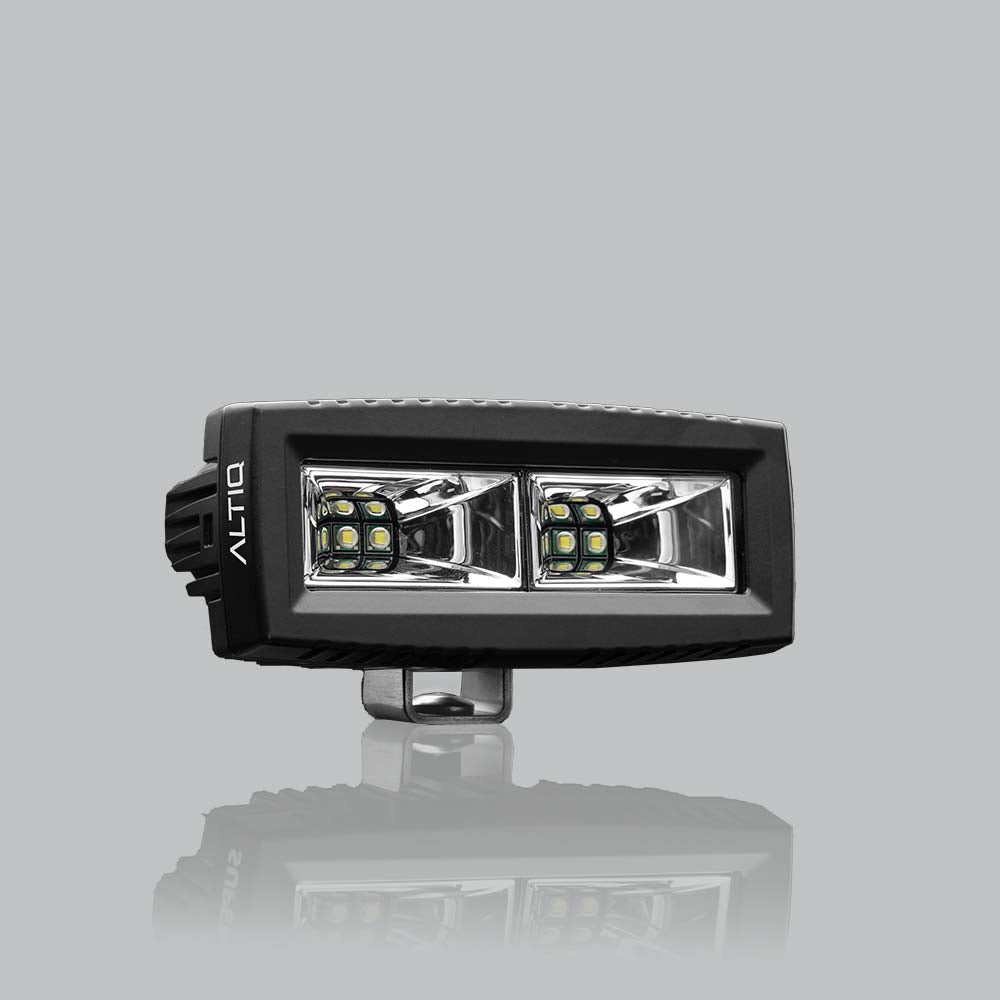

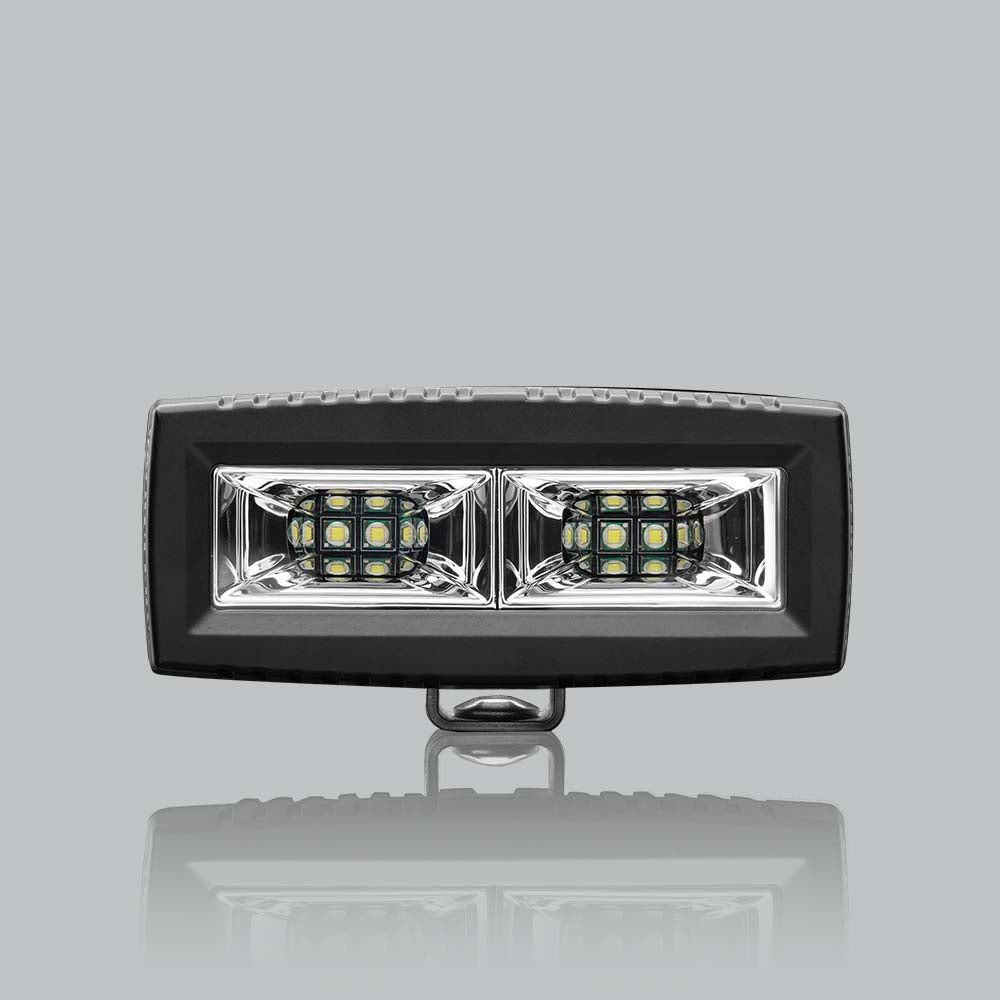

Utilising two Scene 120º Reflectors, this CX4 is the big brother to our popular CX2, in fact, it's literally a double CX2 with twice the LED count and lumen performance whilst maintaining a 54mm fixture height.

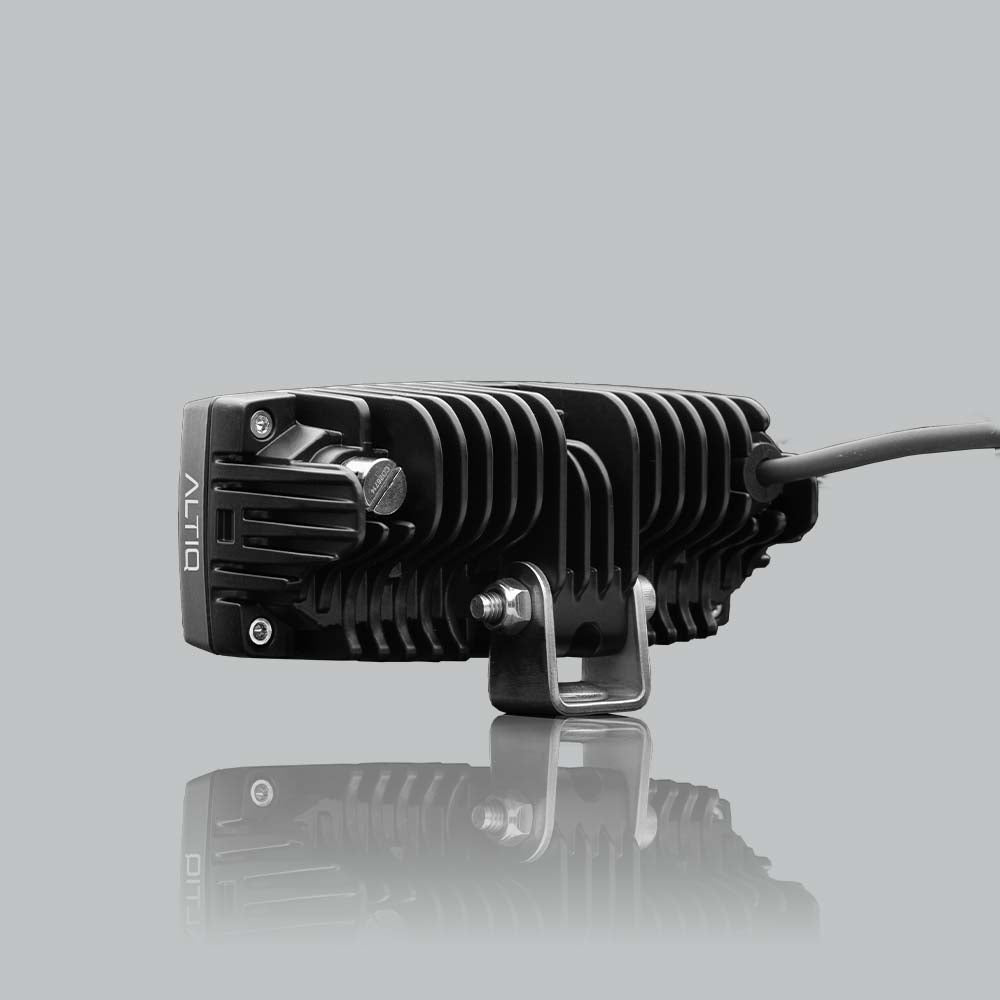

Mount on the side of your awning, roof rack or rear bar for reverse lights with the included low profile stainless steel bracket. Underhang it for roof racks, or angle the bracket backwards on wall mount it directly to a canopy or panel for a reverse light.
SPECIFICATIONS:
| WARRANTY | Life time |
| WATERPROOF RATING | IP69K |
| INPUT VOLTAGE | 10-32V DC |
| SAFETY | Reverse, over and under current protection. Thermal protection. |
| FINISH | DuPont Midnight Black - Non UV fading |
| LENS | GE Lexan |
| COLOUR TEMPERATURE | 6000K |
| CONNECTOR | DT04-2P Deutsche |
| HOUSING MATERIAL | 6063 Heavy Duty Die Cast Aluminum - Stainless Steel Bracket |
| LEDS | CREE 10W XM-L2 |
| Current Draw | 2.2A @ 12V |
| Wattage | 26 Watts @ 12V |
whats included:
CX4 LED work light (1)
Mounting Bracket with bolts (1)

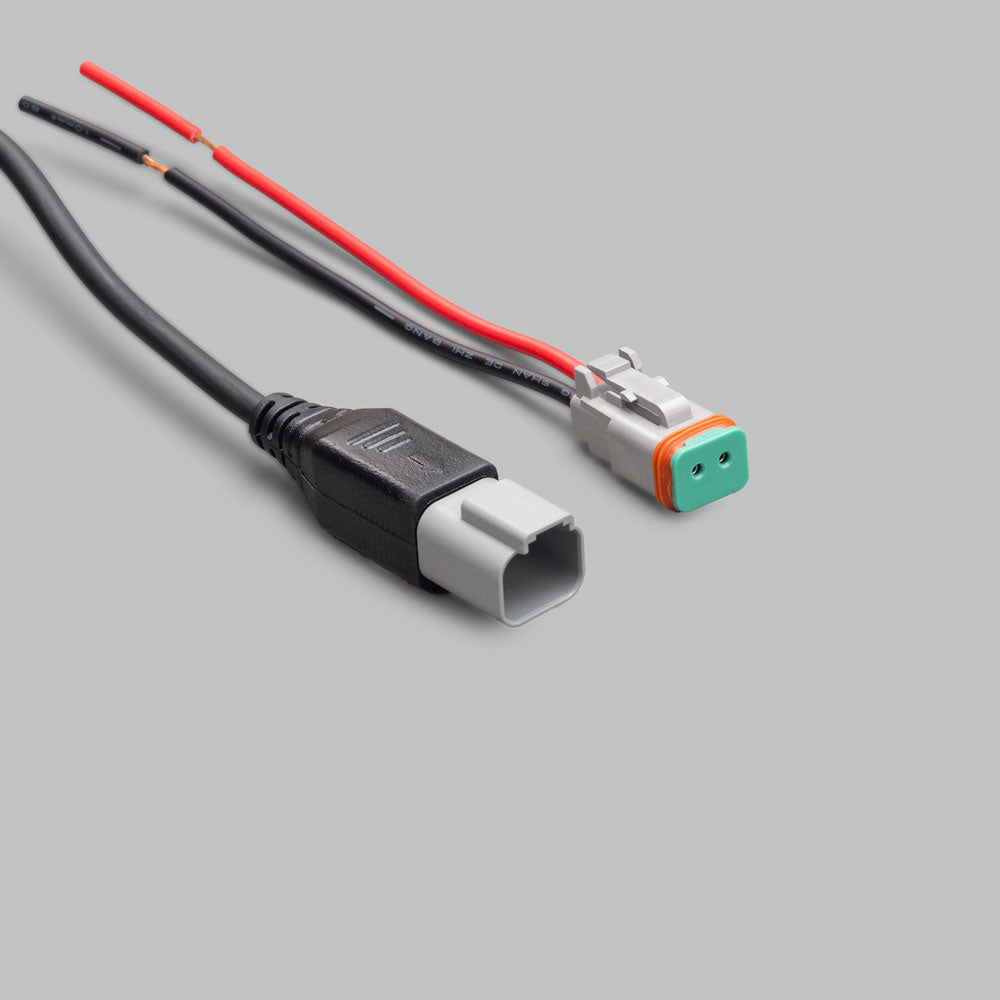

DT Connector with break out wire (1)
dimensions:
