Next-Gen Ford Ranger/Everest Level 2 High Beam Adapter

The Next-Gen Ford Ranger/Everest Level 2 High Beam Adapter offers a seamless solution for connecting auxiliary lights to your vehicle’s high beam circuit. Designed specifically for models with LED reflector headlights, this adapter simplifies the process of integrating additional lighting, ensuring compliance with ADR regulations.

Key Features:

 • Easy Installation: Connects directly to the high beam signal point in the footwell, eliminating the need for splicing or extensive modifications.

• ADR Compliant: Ensures auxiliary lights activate only with the high beams, meeting Australian Design Rules requirements.

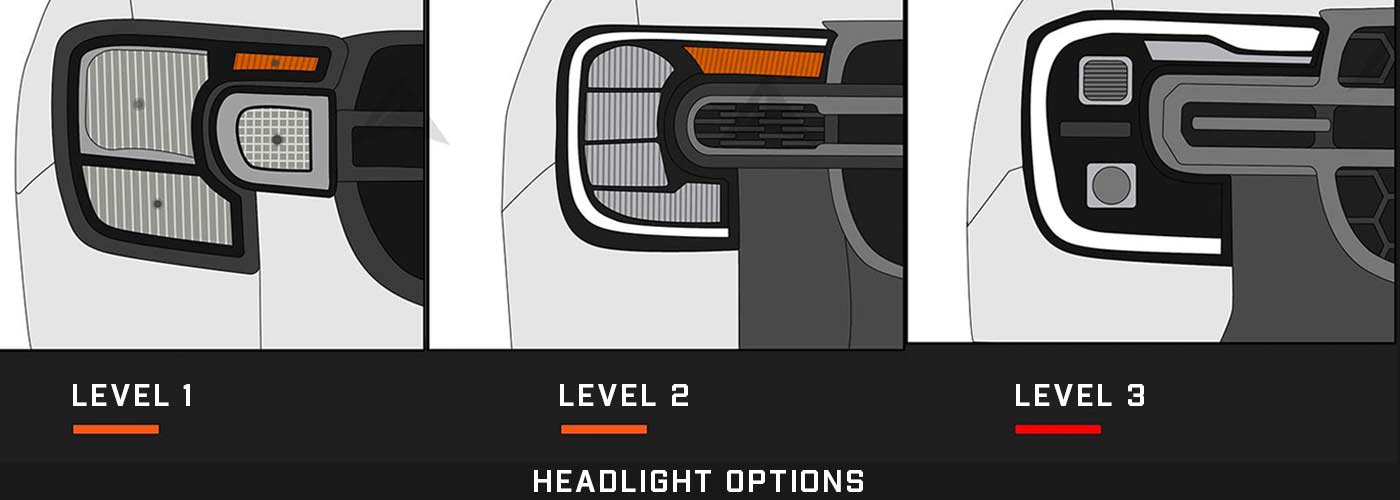

• Vehicle Compatibility: Specifically engineered for Level 2 Next-Gen Ford Ranger and Everest models, ensuring a perfect fit.



High Beam Signal in 6 Easy Steps – No Guesswork Needed



  1. Run the exposed end of your ALTIQ™ Piggy Back Adapter through a suitable passenger-side firewall grommet.

  2. Remove the passenger footwell kick panel to access the internal wiring loom.

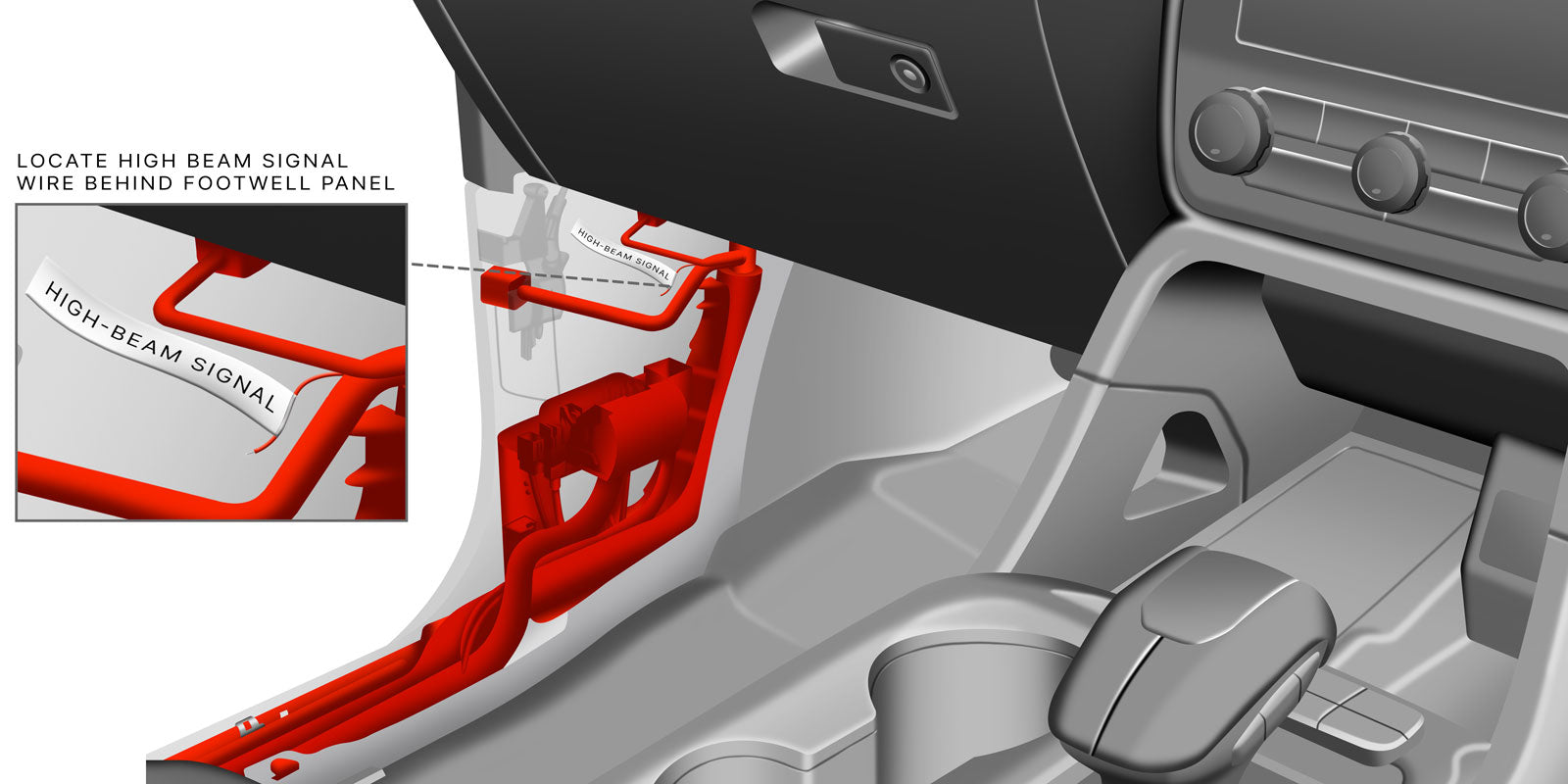

  3. Locate the clearly labelled “HIGH BEAM SIGNAL” wire just behind the panel.

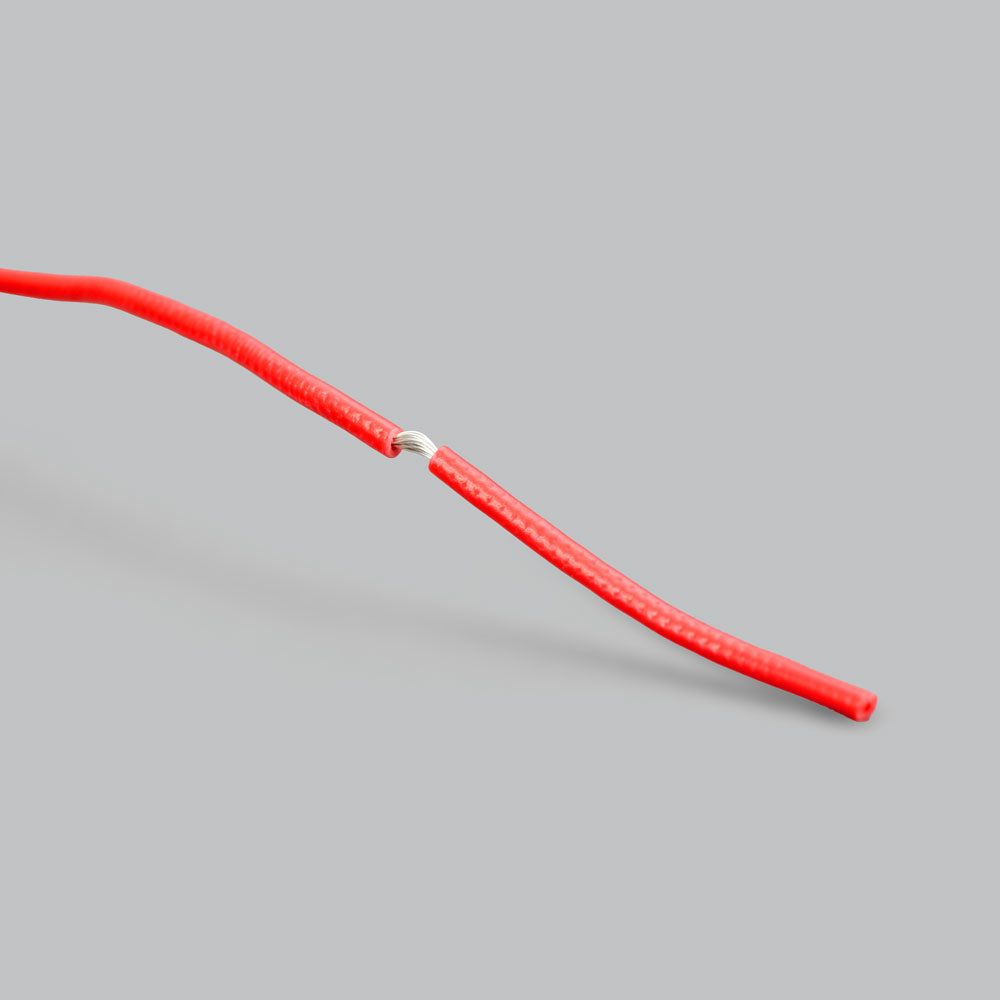

  4. Connect the red wire from your adapter to the high beam signal wire.

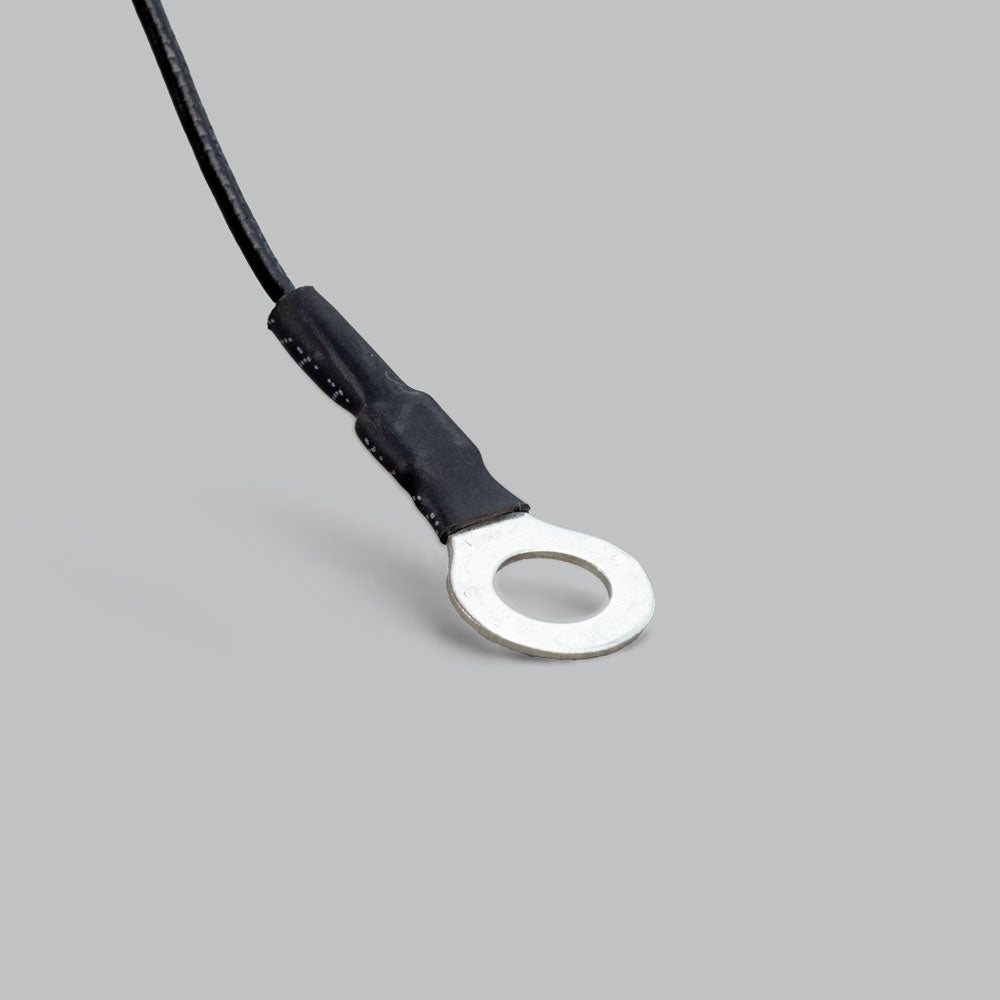

  5. Connect the black ring terminal to a solid ground point behind the kick panel or nearby chassis bolt.

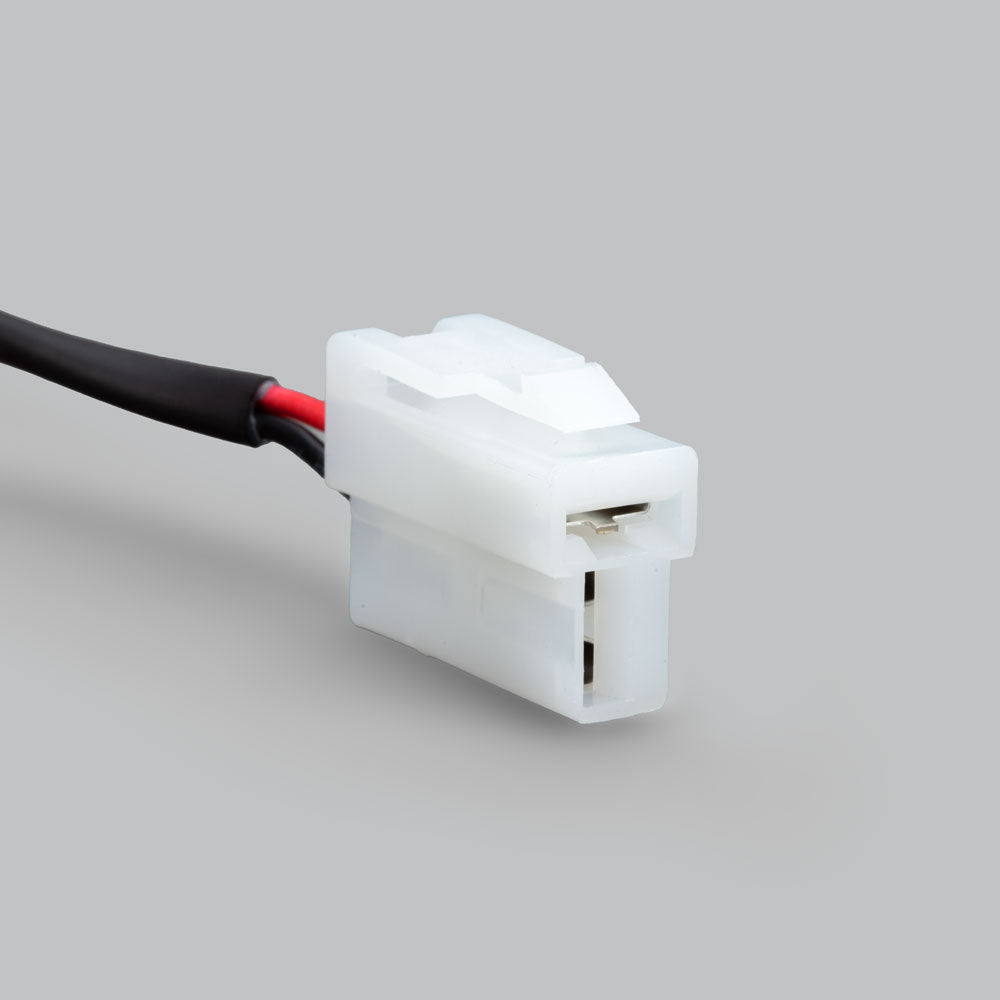

  6. Plug your ALTIQ Fast Fit Harness into the T-Connector, and you're good to go.

Simple, clean, and engineered for durability—just the way we do things at ALTIQ.

Explore More Details

  • DT Deutsch Waterproof Connectors: Secure, waterproof connections that withstand harsh conditions.
  • Next Gen Level 2 High Beam Adapter: Seamless integration with your vehicle's high beam relay.
  • In-Cab Illuminating Switch: Easily control your auxiliary lights, even in the dark.
  • Heavy Duty 12 Gauge Wiring: Designed to handle high-powered lights with consistent performance.
  • Color-Coded Battery Terminal Connectors: Straightforward setup with foolproof installation.
  • Heat and Water Resistant Insulation: Durable insulation for extreme environments.
  • 60A Relay: Reliable power delivery and electrical system protection.
  • 35A Fuse: Extra safety with protection against electrical surges.

    • Adapter Only:

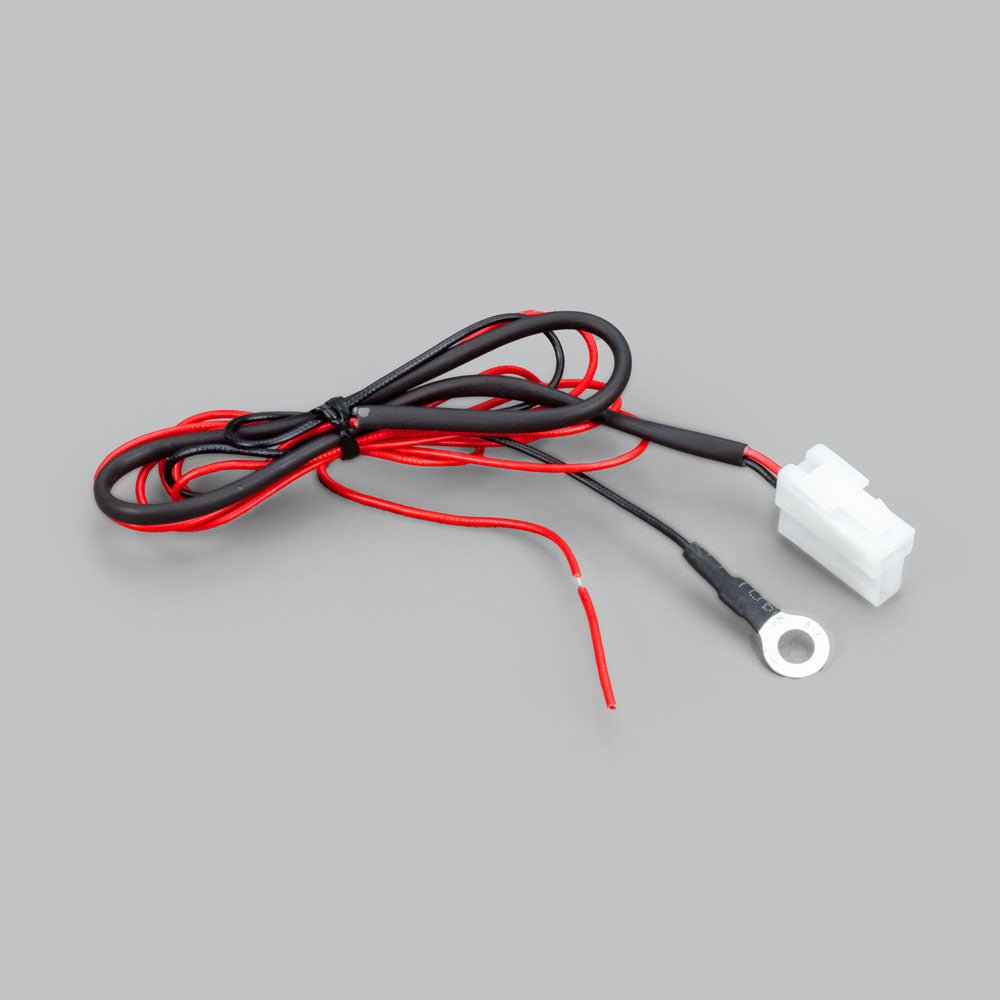

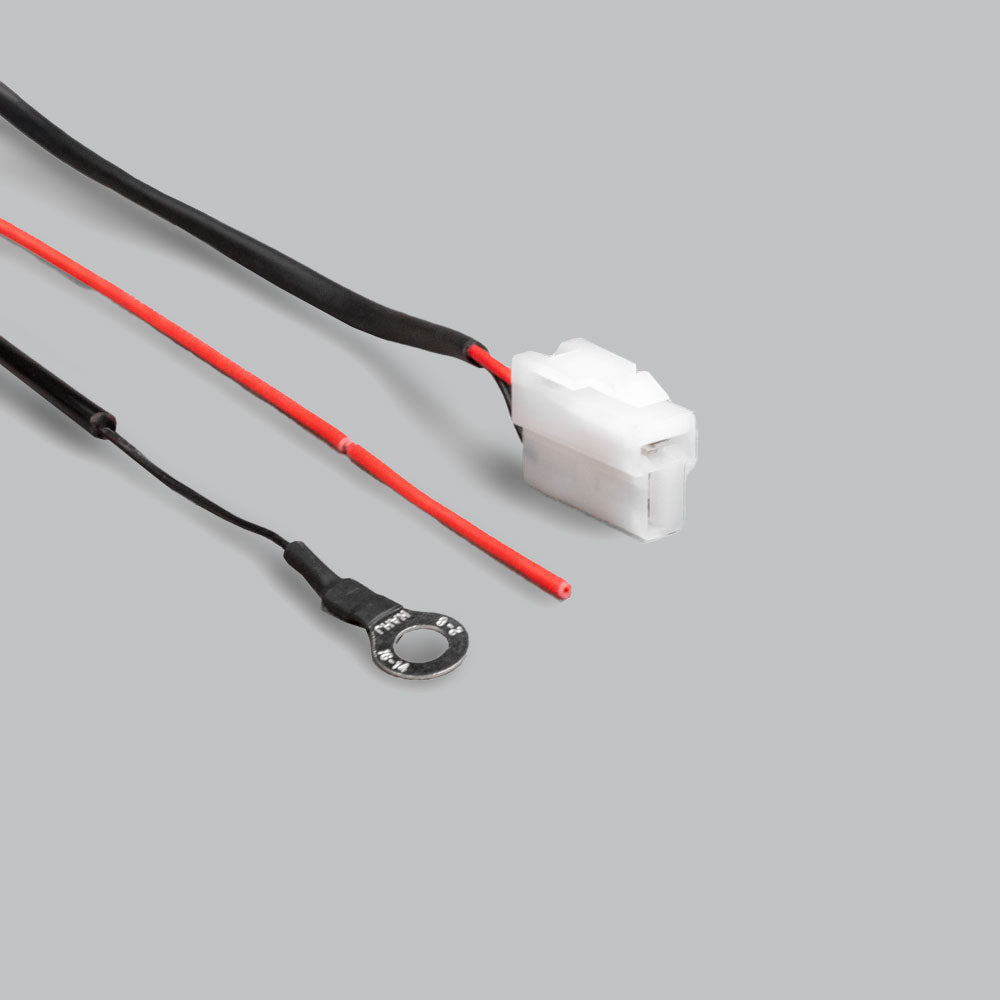

    1 x ALTIQ Ford Ranger / Everest Next Gen (Level 2 LED Headlights) Piggy Back Adapter

    Adapter + Single Wiring Harness:

    1 x ALTIQ Ford Ranger / Everest Next Gen (Level 2 LED Headlights) Piggy Back Adapter
    1 x Fast Fit Single Wiring Harness -     Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In Cabin Isolation Switch

    Adapter + Dual Wiring Harness:

    1 x ALTIQ Ford Ranger / Everest Next Gen (Level 2 LED Headlights) Piggy Back Adapter
    1 x Fast Fit Dual Wiring Harness -     Direct Install with a fully configured harness. Battery Terminals, Fuse, Relay, In Cabin Isolation Switch
