ALTIQ™ Ditch Mount Bracket for Next-Gen Raptor / Ranger / Everest / Super Duty - Install Guide

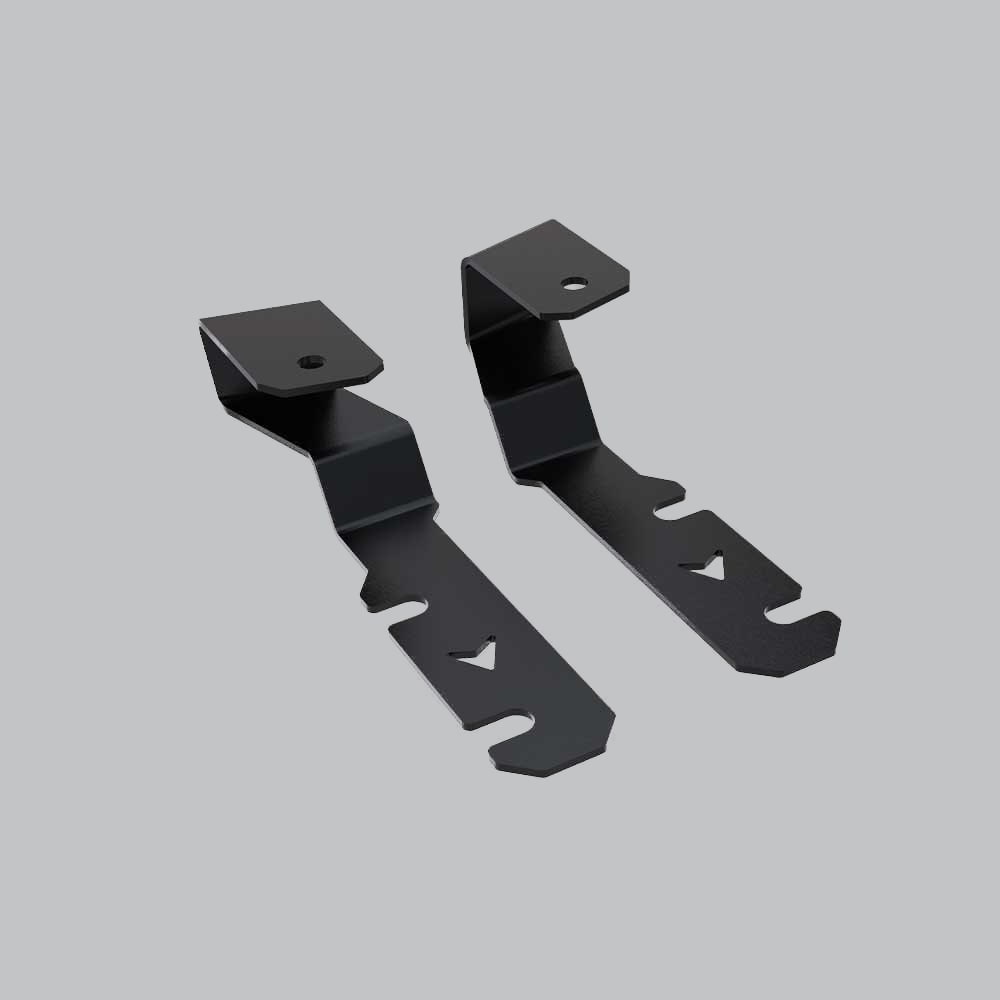

The ALTIQ™ Ditch Mount Bracket is designed to mount your work light cleanly and securely using your vehicle's existing bonnet hinge bolts with no drilling required.

Compatible with: Ford Next-Gen Raptor, Ranger, Everest and Super Duty.

Step 1: Mark the Hinge Position

Open the bonnet and apply masking tape around the bonnet hinge to mark its current position. This ensures accurate realignment when you retighten in Step 4.

Step 2: Loosen the Hinge Bolts

Grab a spanner or socket and carefully loosen the two bonnet hinge bolts. Do not remove them completely, leave them threaded in slightly to support the hinge while you work.

Step 3: Insert the Bracket

Slide the ALTIQ™ Ditch Mount Bracket between the bolts and the hinge. Do not install the bracket between the hinge and the bonnet, as this will raise the bonnet height. Ensure the bracket is flush and properly seated before moving on.

Step 4: Align and Tighten

A. Realign the bonnet hinge with your tape markings. Take your time here, as this is the most important step. Once you're confident the position is correct, remove the tape.

B. Tighten the bolts securely to factory torque specification. If torque specs are unavailable for your vehicle, tighten firmly.

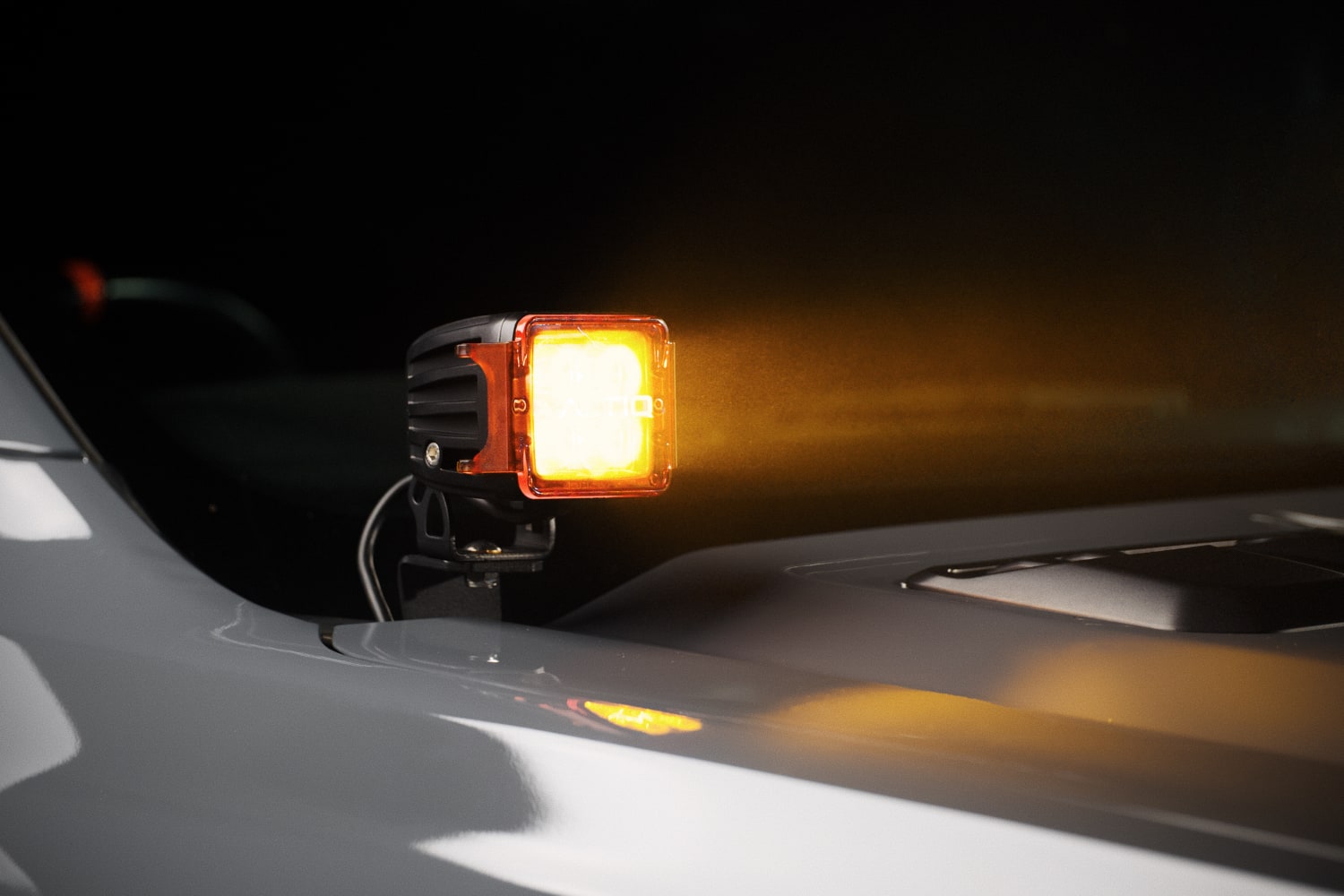

Step 5: Mount the Work Light

Attach your ALTIQ™ Work Light to the Ditch Mount Bracket using the supplied bolts and washers.

Step 6: Adjust and Secure

Manually adjust the angle of the work light to your desired position. Once satisfied, tighten using an Allen key to lock it in place.

That's it—your ALTIQ™ Ditch Mount Bracket is installed and your work light is ready to go. No drilling, no permanent modifications, no guesswork.
