The ALTIQ™ Triple and Trophy Kits run three or four Rogue MK3 driving lights from a single high beam trigger. This guide covers how the wiring works across both configurations; specifically how the High Beam Splitter connects two Fast Fit Harnesses to one trigger source.
Before starting, read the Rogue Driving Light installation guide to install the Rogues and wire them up. This guide covers the High Beam Splitter connection only.
Which Kit Do You Have?
| Kit | Lights | Included Harnesses | Included Splitter |
|---|---|---|---|
| Triple Kit | 3 x Rogue MK3 8.5" | 1 x Single Output + 1 x Dual Output Fast Fit Harness | 1 x High Beam Splitter |

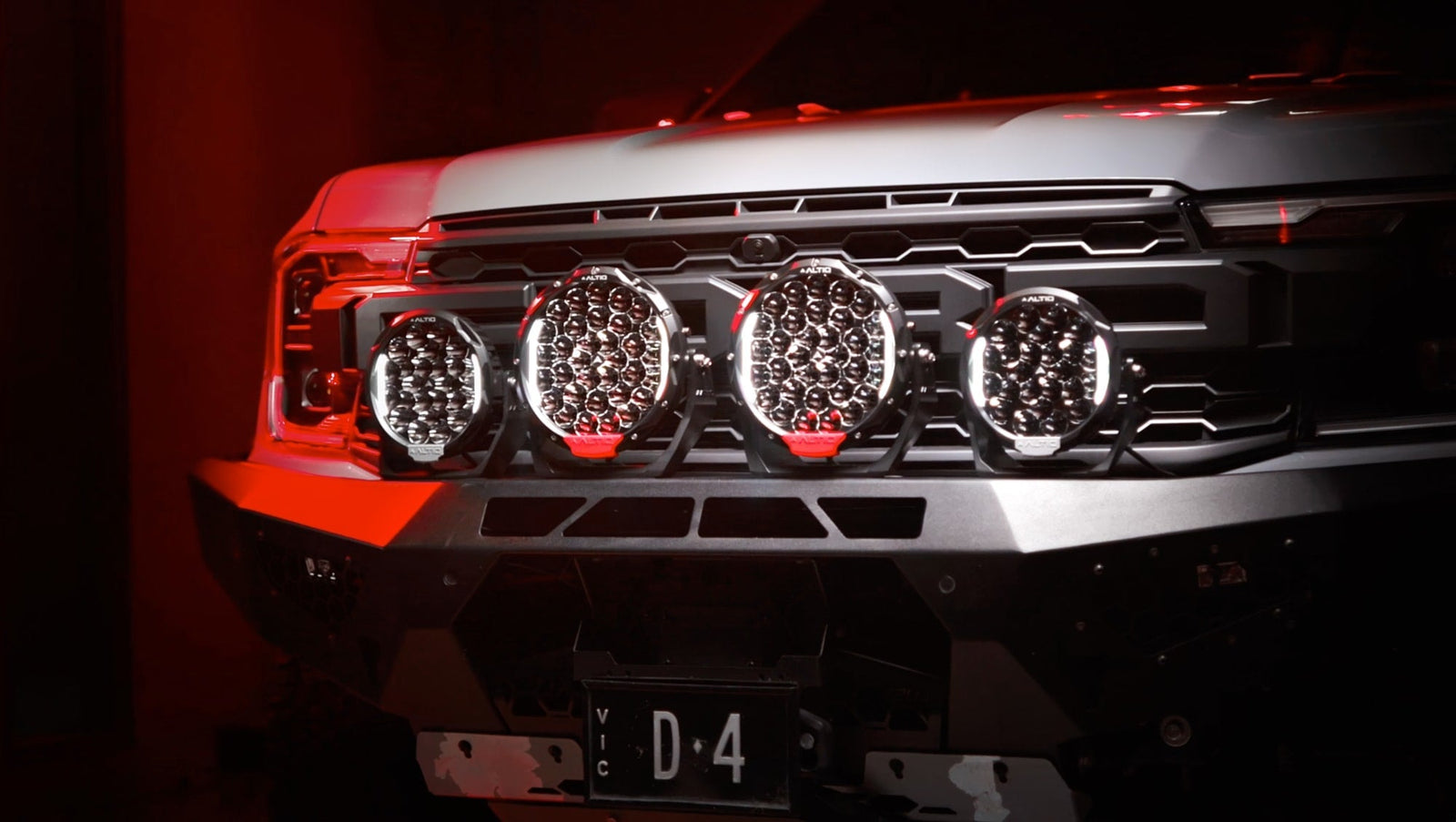

| Trophy Kit | 2 x Rogue MK3 8.5" + 2 x Rogue MK3 7" | 2 x Dual Output Fast Fit Harness | 1 x High Beam Splitter |
The wiring method is identical for both. The Trophy Kit diagram is shown in this guide — Triple Kit installations follow the same method with three lights.
Why a High Beam Splitter?
Each Fast Fit Harness requires a high beam trigger signal to activate the driving lights. With two harnesses running simultaneously, both need to trigger from the same source. The High Beam Splitter takes a single input from your vehicle's high beam adapter and distributes it to both harnesses, keeping all lights synchronised.
Harness Assignment
Harness 1 — centre light(s)
Harness 2 — outer lights
Each harness connects independently to the battery with its own ring terminals, fuse, and relay. The only shared element is the high beam trigger via the splitter.
Wiring Steps for High Beam Splitter
- Connect your vehicle-specific high beam adapter to the input on the High Beam Splitter.
- Connect one splitter output to the high beam trigger input on Harness 1.
- Connect the second splitter output to the high beam trigger input on Harness 2.
- Connect each light's DT-P plug to the correct harness — centre light(s) to Harness 1, outer lights to Harness 2.
All lights will activate together when high beams are on and the isolator switch is enabled.
Maximum 2 Rogue driving lights per Fast Fit Harness. Exceeding this will cause overheating, component damage, and void the warranty.
Questions about fitment or which high beam adapter suits your vehicle? Contact us before starting.
