DESCRIPTION
MEET THE BEST REVERSE LIGHT, EVER.

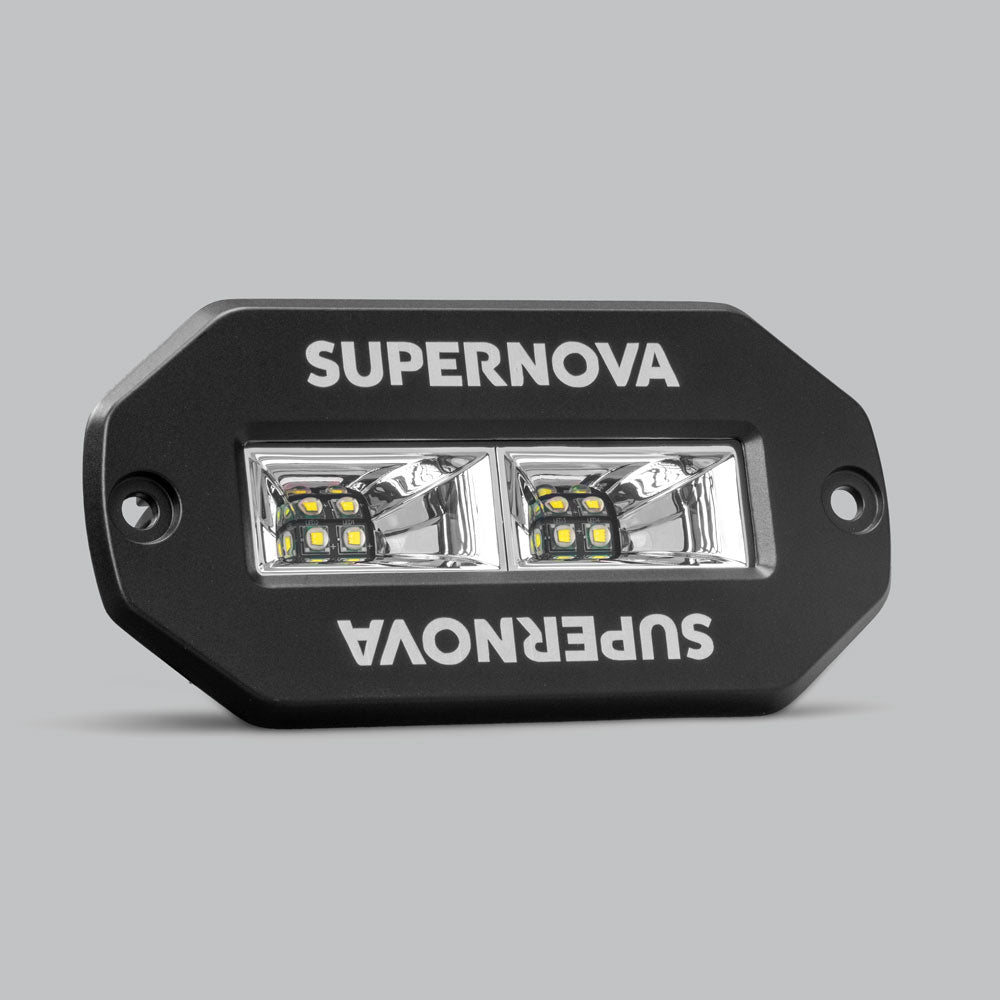

The CX4 Flush Mount is everything you love about the CX2—just bigger, brighter, and broader. With a dual-scene optic delivering a massive 120° spread, it’s the flush-mount solution for those who want more coverage while maintaining a clean, integrated look.
Whether it's mounted on the side of your canopy, tucked into a wide bumper panel, or installed in a commercial fleet vehicle, the CX4 delivers unmatched area lighting with zero glare or tunnel vision.
-
120° scene beam with dual wide-angle optics
-
Smooth, even beam with no central hot spot
-
Ideal for: Wide tray lighting, dual-door canopies, trailer rigs, or custom panel installs
-
Durable, sealed housing with flush bolt-on design
Next Level Compact Flood

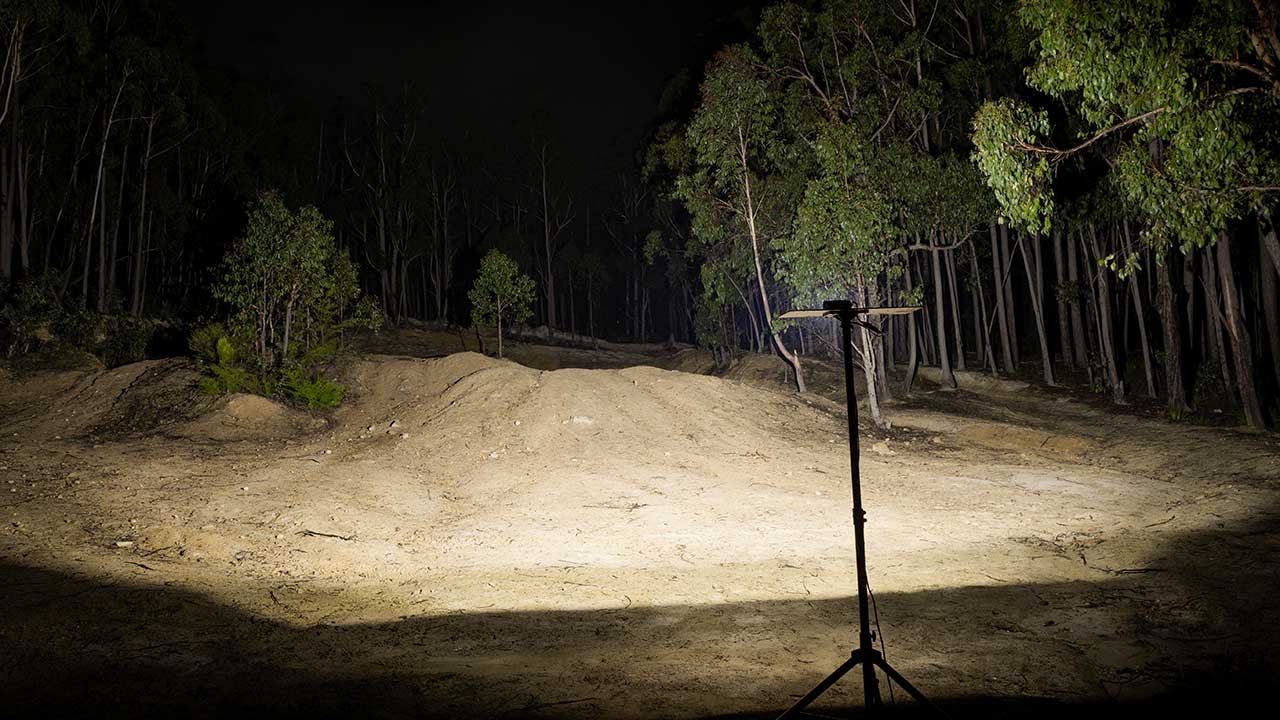

This is what true flood performance looks like. The CX4 Work Light throws a 120° wall of light with pure, edge-to-edge consistency—no harsh hotspots, no falloff, just an even glow that blankets the entire scene. Whether you're working in the bush, setting up camp, or lighting a remote job site, the CX4 ensures nothing is left in the shadows. It’s designed to light wide, so you can focus on the task—not fight the dark.
Installation Made Simple
Getting the perfect flush-mount install has never been easier. With the CX4’s dedicated printable template guide, you’ll know exactly where to cut and drill—no second guessing. Just print the guide, cut it out, and position it on your panel. The outlines show precise dimensions for both the light and bolt holes, saving you time and effort. Once your cut is clean, just drop in the CX4 with the included gasket and stainless-steel hardware. That’s it. A clean, factory-style fit in minutes—engineered for perfection, delivered with simplicity.
SPECIFICATIONS:
| WARRANTY | Life time |
| WATERPROOF RATING | IP69K |
| INPUT VOLTAGE | 10-32V DC |
| SAFETY | Reverse, over and under current protection. Thermal protection. |
| FINISH | DuPont Midnight Black - Non UV fading |
| LENS | GE Lexan |
| COLOUR TEMPERATURE | 6000K |
| CONNECTOR | DT04-2P Deutsche |
| HOUSING MATERIAL | 6063 Heavy Duty Die Cast Aluminum - Stainless Steel Bracket |
| LEDS | CREE 10W XM-L2 |
| Current Draw | 2.2A @ 12V |
| Wattage | 26 Watts @ 12V |
whats included:
CX4 Flush Mount LED work light (1)
Mounting Hardware - Stainless Steel
Rubber EPDM Gasket
DT Connector with break out wire (1)
features:
- General Electric Lexan lens - Near Indestructible lens that stays clear as intended and does not haze over or yellow. No protective covers needed.
- DuPont black paint - Black that stays black - highest chip resistant coating.
- Gore-Tex breather valve - 100% pressure equalisation and moisture venting.
- CISPR 25 Class 3 Certified - Zero Radio/communication interference
- IP69K Waterproof - Highest Dust & Waterproof Rating - Pressure wash safe.
- 10 Year warranty - No strings, our lights are made to last!
- Deutsch Connector - 150mm Tail for easy of connection
